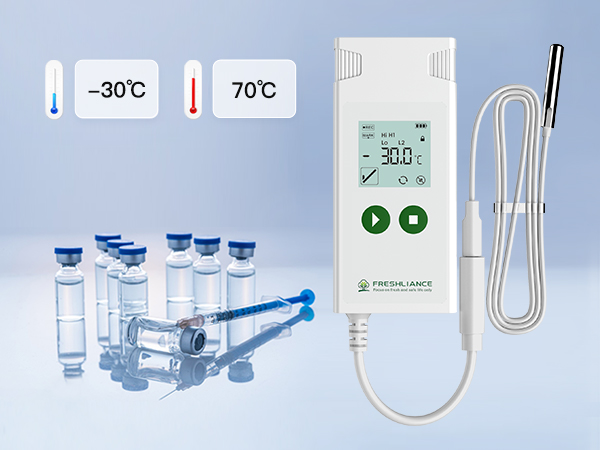

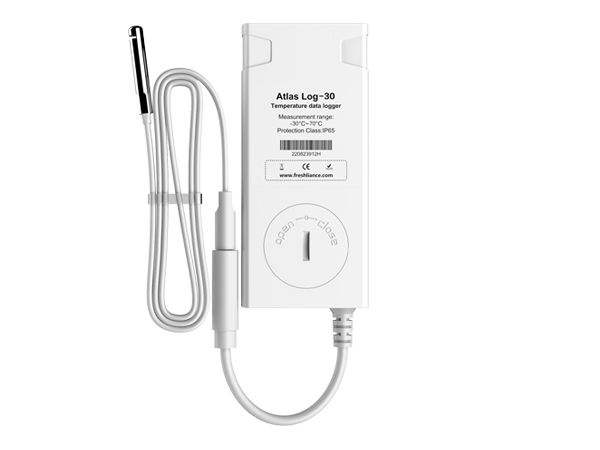

Atlas Log-30 Temperature Data Logger

Online software configuration

Monitoring parameters can be freely configured using the Freshliance configuration software before deployment.

Alarm points and mark function

Up to 6 alarm points can be set. During monitoring, up to 9 marks can be added to record key events.

Intuitive LCD display

The LCD screen displays operating status, current temperature, alarm status, battery level, alarm points, as well as Max., Min., and Average temperature values.

Temporary report available

Temporary report mode allows users to export and review data while the logger continues recording.

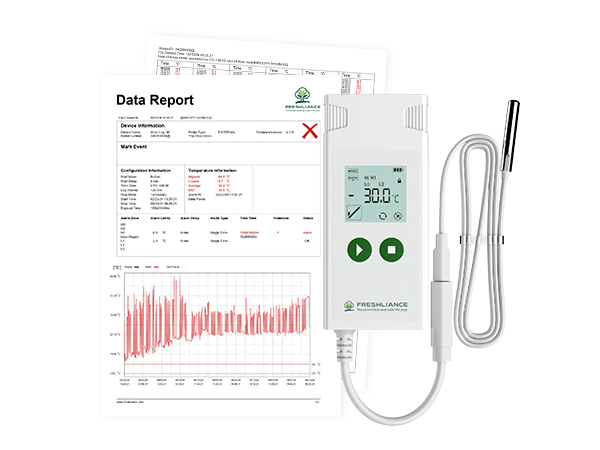

Automatic PDF/CSV data report

With the integrated USB design, the PDF report temperature data logger can be directly connected to a computer to automatically generate PDF, CSV, or PDF&CSV reports with graphs and tables, without cables or readers.

LCD alarm indication and optional buzzer alarm

When the temperature exceeds the preset alarm range, an alarm symbol is displayed on the LCD. An optional buzzer can emit an audible alarm of 60 dB at 3 m.

Temperature units switchable

Temperature units can be switched freely between Celsius (℃) and Fahrenheit (℉).

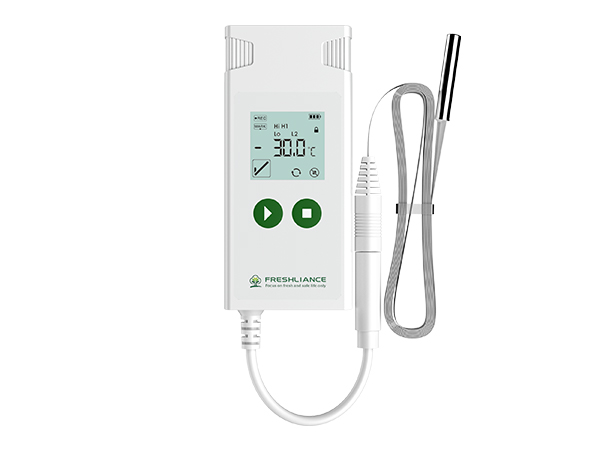

Multiple probe types optional

The external pluggable probe cable is standard 2 m, with customizable lengths available. Cable insulation materials include PVC, Teflon, Silicone, and flexible ultra-thin cable options.

Flexible ultra-thin cable is suitable for refrigerator doors and other environments requiring high sealing performance. Sharp or blunt probe tips are optional.

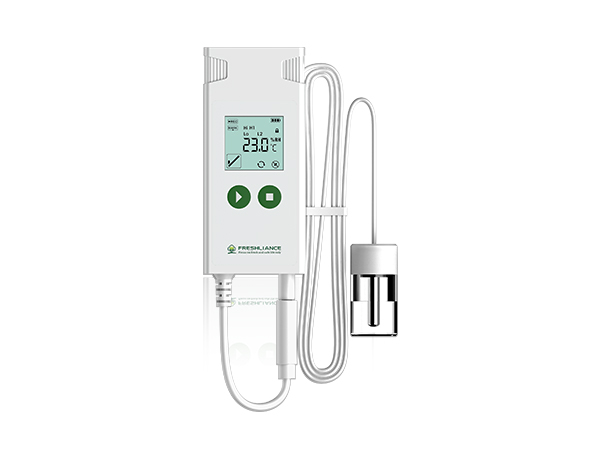

Propylene glycol–encased temperature probe for vaccine monitoring

The buffered probe is designed to minimize the influence of short-term air temperature fluctuations caused by door opening or loading operations, better simulating the actual temperature conditions experienced by stored products. It is ideal for vaccines, pharmacies, and walk-in coolers.

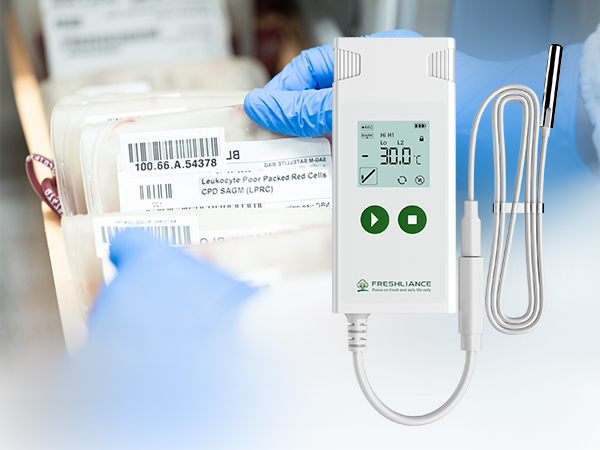

Atlas Log-30 single-use / multi-use USB temperature data logger with external probe is suitable for in-transit and storage temperature monitoring of biopharmaceuticals, life sciences products, biological samples, blood cold chain shipments, and diagnostic reagents, including biological and molecular reagents.

With an external probe design, Atlas Log temperature data loggers are capable of monitoring low-temperature environments in cold storage, cold chain transportation, and dry ice applications.

Atlas Log temperature data logger with external probe is well suited for low-temperature shipments requiring frequent temperature sampling, including dry ice transport, sea or air freight, distribution, cold storage, freezing, pharmaceuticals, frozen foods, and shipping containers.

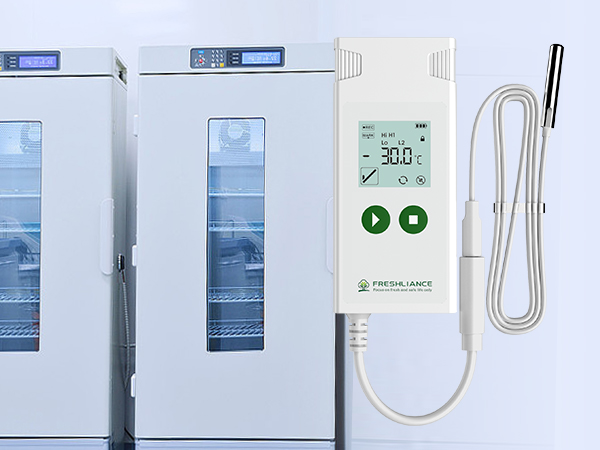

For biologics and vaccines with short shelf lives, temperature conditions during transportation and storage must be strictly controlled. Atlas Log laboratory temperature data loggers provide clear temperature records and compliance documentation for pharmaceutical and biologics cold chain applications.

Freshliance Tools

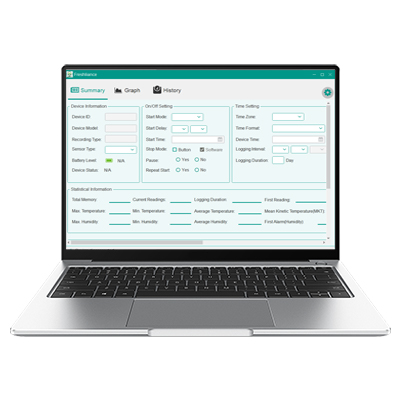

Freshliance Tools is a desktop software for users to use Freshliance USB data loggers. It consists of three pages: Summary, Graph and History. On the Summary page, the software will first automatically identify ID, model, recording type, sensor type, battery level, status and other information of the device plugged in. And then users can configure the data logger as needed, including start mode, start delay, time zone, time format, logging interval, report format, PDF/software password, high and low alarm, etc. During or after data recording, user can also check statistical information of the device after plugging it in. Besides, the graph page provides a simple X–Y plot of time versus temperature/humidity which can be save as PNG format file, a list and a summary of all data recorded, as well as an option to export the report in PDF, CSV, TXT format; and the history page provides a list of all the devices whose report was read by this software.

The software is designed for Fresh Tag 10T/TH, Thermis Log 10T/TH, Tagplus-T/TH, Atlas Log-30/60/90/200/IUT, Rugged data logger, Keeper 1/IUT, COEUS-UEX.
