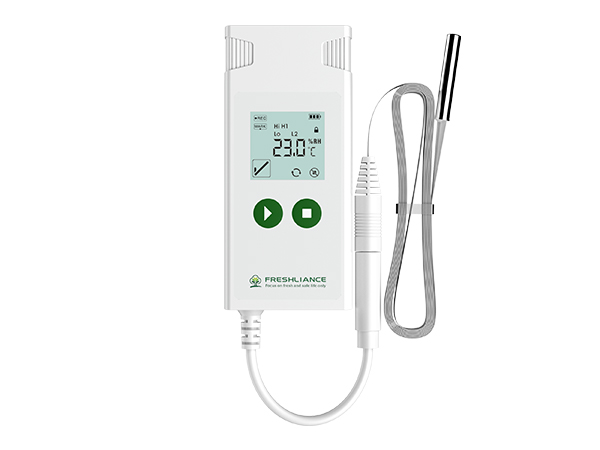

Atlas Log-TH Temperature and Humidity Data Logger

Freely software configuration

Monitoring parameters can be freely configured using the Freshliance configuration software before deployment.

Alarm points and mark function

Up to 6 alarm points can be set. During monitoring, up to 9 marks can be added to record key events.

Password protection

Password protection can be enabled to prevent unauthorized operations and parameter changes.

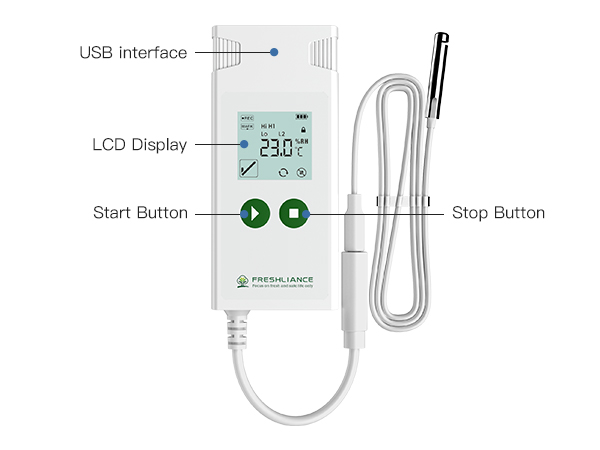

Intuitive LCD display

The LCD screen displays operating status, current temperature and humidity, alarm status, battery level, alarm points, as well as Max., Min., and Average temperature and humidity values.

Temporary report available

Temporary report mode allows users to export and review data while the logger continues recording. Current configuration information can be viewed using the configuration software.

Automatic PDF/CSV data report

With USB connection to a computer, the PDF temperature logger automatically generates PDF, CSV, or PDF&CSV reports with graphs and tables, without cables or readers.

Multiple probe types optional

The external pluggable probe cable is standard 2 m, with customizable lengths available. Cable insulation materials include PVC, Teflon, Silicone, and flexible ultra-thin cable options.

Flexible ultra-thin cable is suitable for refrigerator doors and other environments requiring high sealing performance. Sharp or blunt probe tips are optional.

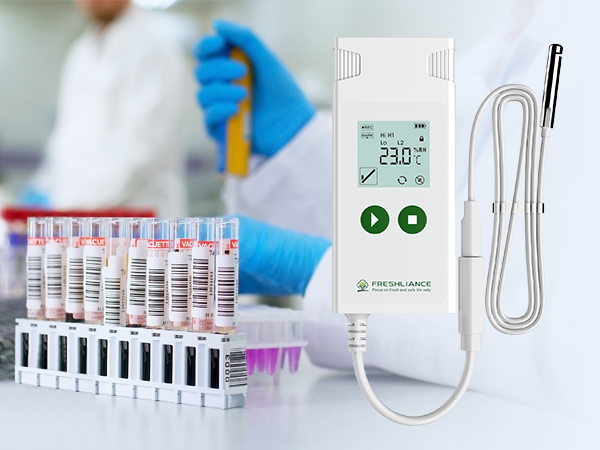

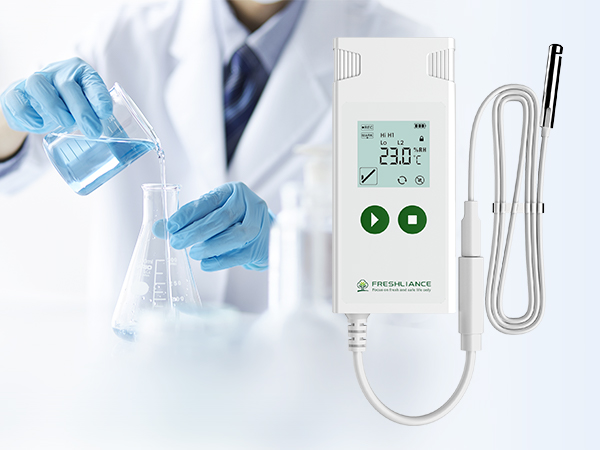

Atlas Log-TH single-use / multi-use temperature and humidity data logger with external probe is suitable for in-transit and storage monitoring of biopharmaceuticals, life sciences products, biological samples, blood cold chain shipments, and diagnostic reagents, including biological and molecular reagents.

Atlas Log-TH temperature and humidity data logger with external probe is an effective monitoring solution for shipments and storage environments that require frequent temperature and humidity sampling and reliable documentation.

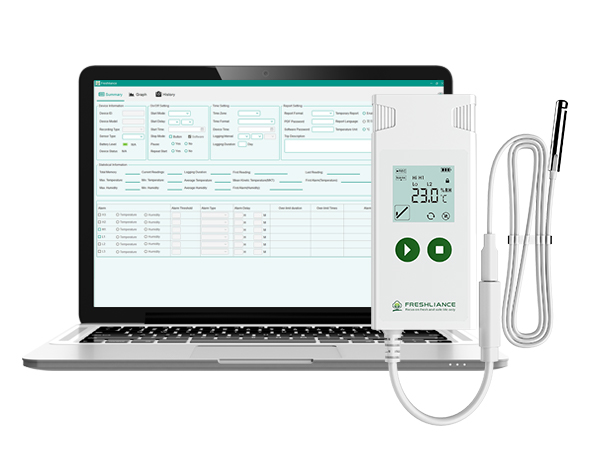

Freshliance Tools-ETH

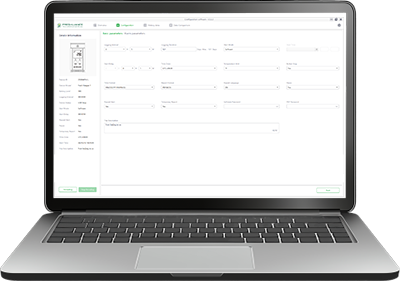

Freshliance Tools-ETH is a desktop software specially designed for users to use Atlas Log-TH data logger. It consists of three pages: Summary, Graph and History. On the Summary page, the software will first automatically identify ID, model, recording type, sensor type, battery level, status and other information of the device plugged in. And then users can configure the data logger as needed, including start mode, start delay, time zone, time format, logging interval, report format, PDF/software password, high and low alarm, etc. During or after data recording, user can also check statistical information of the device after plugging it in. Besides, the graph page provides a simple X–Y plot of time versus temperature/humidity which can be save as PNG format file, a list and a summary of all data recorded, as well as an option to export the report in PDF, CSV, TXT format; and the history page provides a list of all the devices whose report was read by this software.
