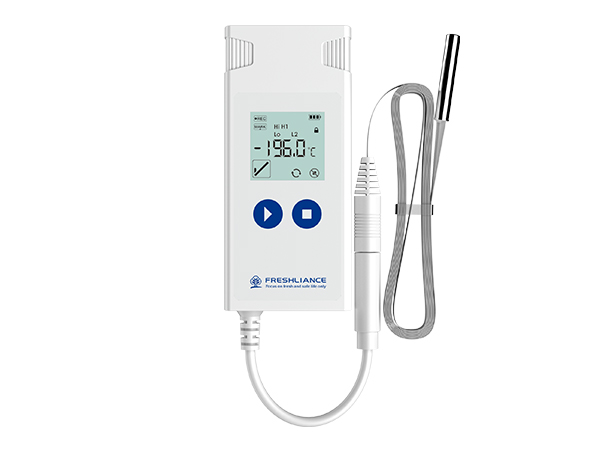

Atlas Log Ultra Low Temperature Data Logger

Parameters configurable

Parameters can be freely configured through the configuration software.

Replaceable battery

The battery can be replaced.

Alarm points and markers

Up to 6 alarm points can be set, and up to 9 marks can be recorded.

Password protection

A password can be set to prevent unauthorized operation.

High precision

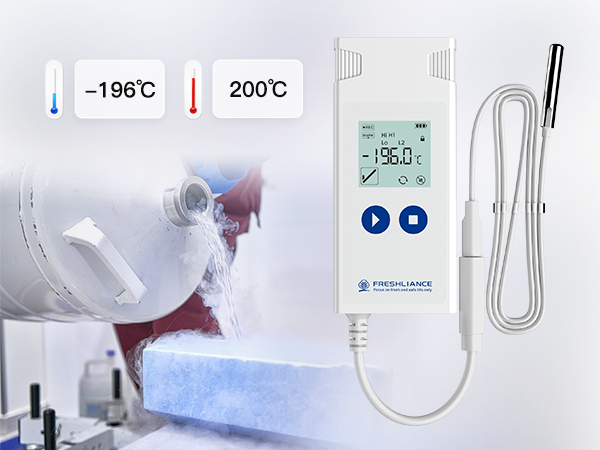

The liquid nitrogen temperature data logger with external probe can measure temperatures as low as -196℃ with high accuracy.

Intuitive LCD display

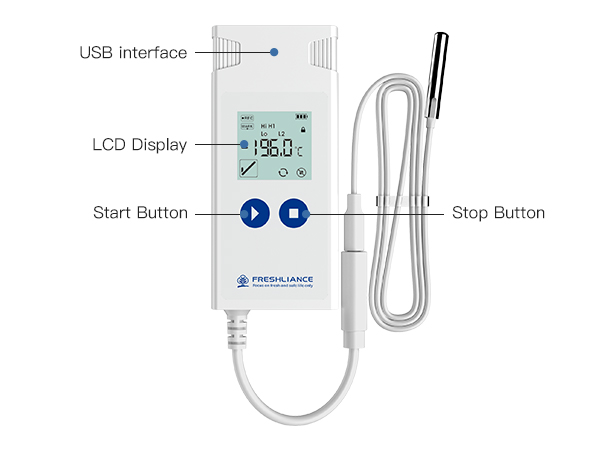

The LCD screen displays: running status, alarm, max/min/average temperature values, and battery level.

Temporary report available

Temporary mode allows the device to continue working after users export and read a temporary report. Current configuration information can be viewed via configuration software.

Automatic PDF/CSV reports

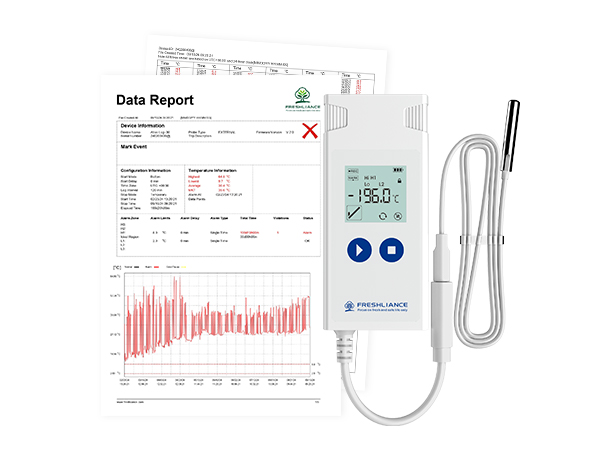

By connecting to a PC via USB, the logger automatically generates PDF, CSV, or PDF+CSV reports with graphs and tables, no additional software required.

LCD alarm indication and optional buzzer

When temperature exceeds the preset alarm range, an alarm symbol will appear on the LCD screen. The buzzer alarm is optional.

Temperature units switchable

Celsius (℃) and Fahrenheit (℉) can be freely switched.

Large memory capacity

Max. 35,000 readings for PDF-only reports; max. 20,000 readings for PDF & CSV reports.

Multiple probe length and insulation options

External pluggable cables are normally 2 m long. Other lengths are customizable. Cable insulation materials include PVC, Teflon, Silicone, and flexible ultra-thin cable. Flexible ultra-thin cables are suitable for refrigerator doors and other high-sealing environments. Users can choose sharp or blunt sensor heads as required.

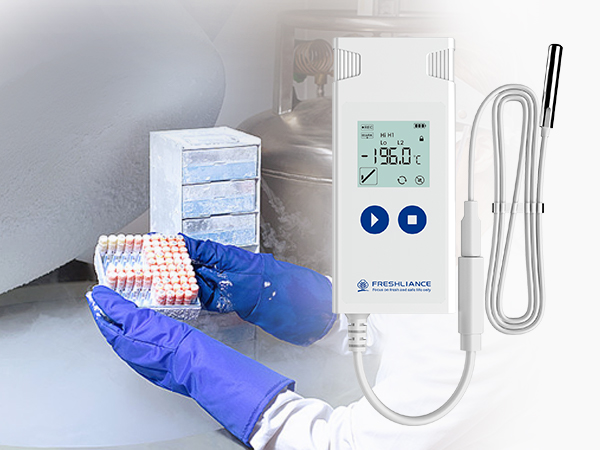

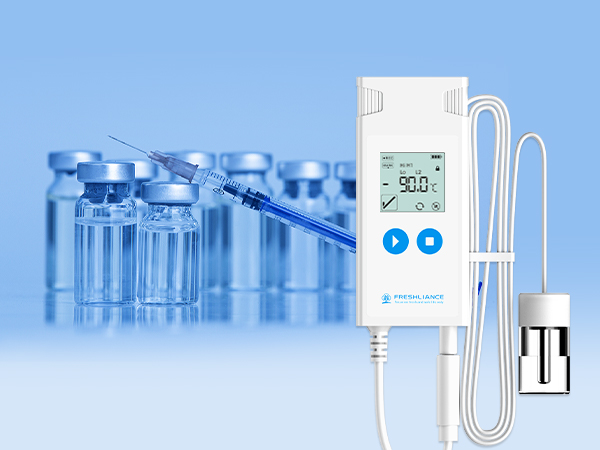

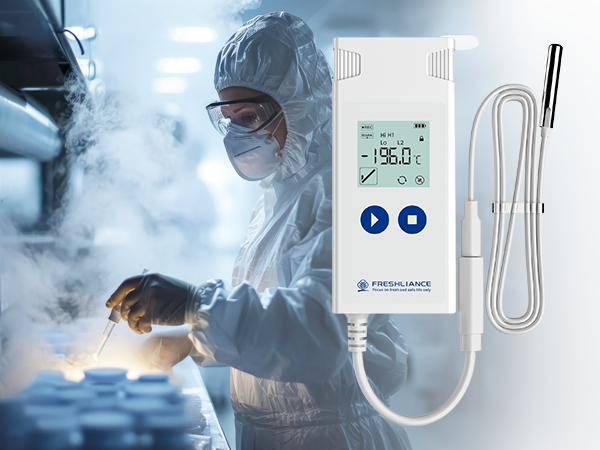

Atlas Log Series laboratory ultra low temperature recorder can be widely used to monitor and record temperatures in cold chain logistics, storage, and transportation of biopharmaceuticals, life sciences products, biological samples, and diagnostic reagents in ultra-low or ultra-high temperature environments.

Freshliance Tools

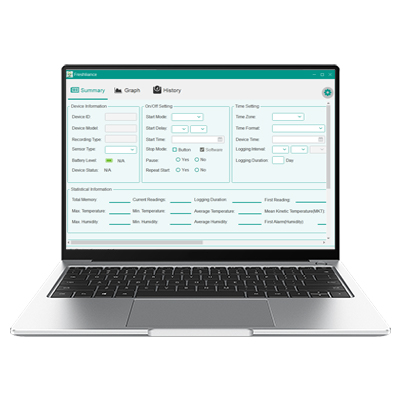

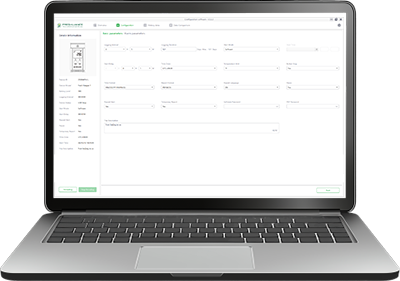

Freshliance Tools is a desktop software for users to use Freshliance USB data loggers. It consists of three pages: Summary, Graph and History. On the Summary page, the software will first automatically identify ID, model, recording type, sensor type, battery level, status and other information of the device plugged in. And then users can configure the data logger as needed, including start mode, start delay, time zone, time format, logging interval, report format, PDF/software password, high and low alarm, etc. During or after data recording, user can also check statistical information of the device after plugging it in. Besides, the graph page provides a simple X–Y plot of time versus temperature/humidity which can be save as PNG format file, a list and a summary of all data recorded, as well as an option to export the report in PDF, CSV, TXT format; and the history page provides a list of all the devices whose report was read by this software.

The software is designed for Fresh Tag 10T/TH, Thermis Log 10T/TH, Tagplus-T/TH, Atlas Log-30/60/90/200/IUT, Rugged data logger, Keeper 1/IUT, COEUS-UEX.
