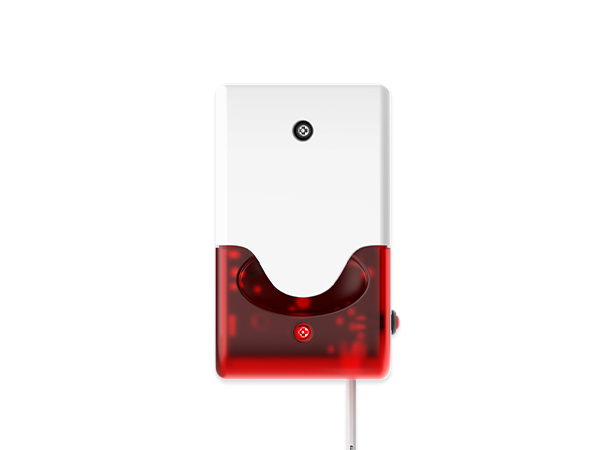

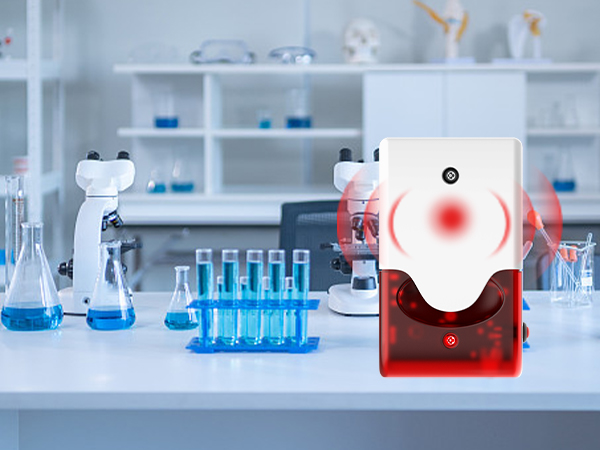

BlueTag A100 Bluetooth Audible and Visual Alarm is a stand-alone warning device to detect alarm messages from Freshliance Bluetooth temperature/humidity data loggers via Bluetooth wireless communication. The temperature and humidity alarm will give warning signals through four flashing red LEDs and an alarm speaker of 80dbm, when any alarm message is detected. The wireless temperature alarm can be widely used in families, schools, factories, communities, convenience stores, and private villas, etc.
Automatically collect alarm messages from multiple Bluetooth data loggers via Bluetooth, no pairing required
After power up, this Bluetooth audible and visual alarm will automatically scan all the broadcast signals sent by surrounding Bluetooth data loggers via Bluetooth wireless communication in real time, no pairing required.
Sound and light alarm (mute button available)

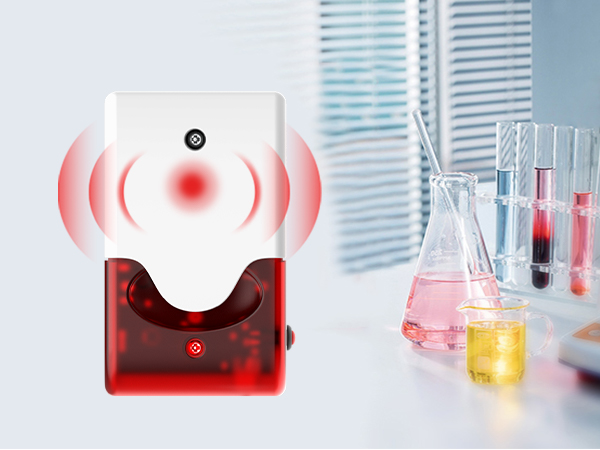

When any alarm messages are detected among the broadcast signals, this Bluetooth temperaturealarm will automatically give a sound and light alarm via four flashing red LEDs and an alarm sound greater than 80dbm for maximum impact. The alarm will last up to 90s. And a mute button is provided for users to mute the alarm sound as necessary.
Mains power
This wireless temperature alarm has been designed to be continuously powered via the mains, so as to ensure power system stability and minimize the disturbances caused by voltage variations.
9V ~ 12V, wide power supply voltage range
It has also been designed with wide power supply voltage ranges from 9V to 12V, easy to use in different regions and countries. In addition to the standard power adaptor, users can also customize an adaptor as needed.
Heat and cold-resistant case
This Bluetooth data alarm device is protected with a high-quality case of high transparency and fine shock, heat and cold resistance, so as to ensure stable performance.
Easy to use, plug-and-play

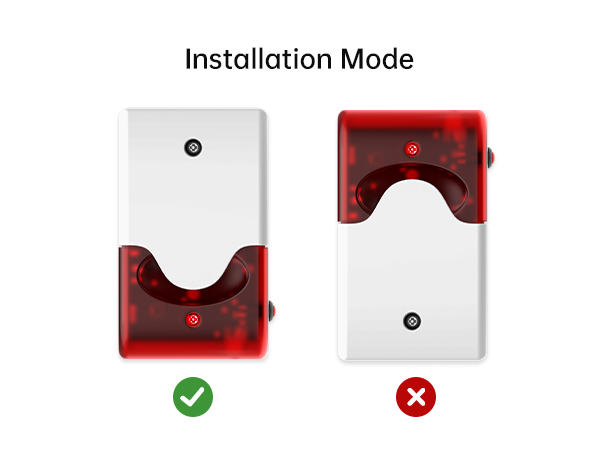

This Bluetooth temperature alarm can be easily installed with a 3M adhesive tape or two screws. Then once plugged in, it will start to work, no programming needed.
Working Temperature
-10℃ ~ 50℃
Power Interface
Power plug
Detection Range
≥ 5m
Power Input
9V ~12V
Stand-by Power Consumption
≤ 25mA
Alarm Power Consumption
≤300mA
Installation
3M adhesive tape, screws
Alarm Mode
Audible and visual alarm
Sound Intensity
>80dbm (at 1meter)

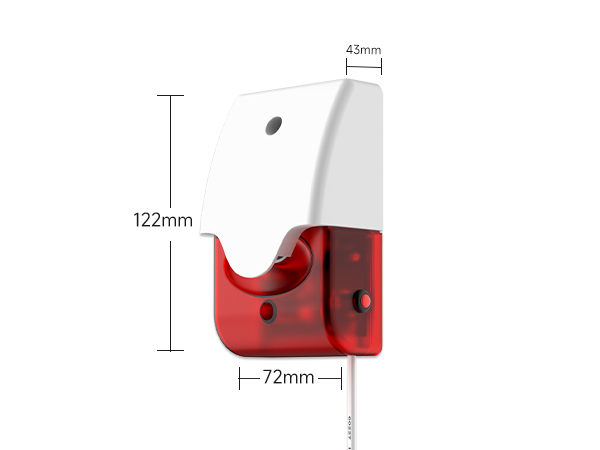

Dimensions
122mm(L)*72mm(W)*43mm(H)
Weight
100g
The recommended distance away from the Bluetooth Data Loggers:
Model
Max. Distance Recommended
BlueTag T10
10m
BlueTag T100
5m
BlueTag TH100
5m
BlueTag TH20
5m
BlueTag TH10
10m
BlueTag TH30
5m

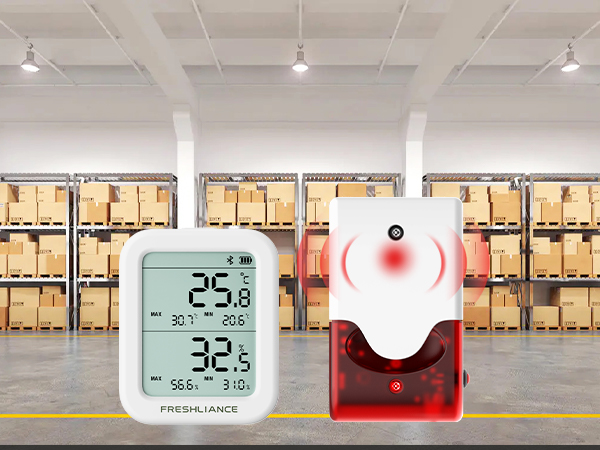

BlueTag A100 Bluetooth Audible and Visual Alarm can be widely applied in large hoisting machinery, engineering vehicles, banks, government agencies, buildings, villas, forest parks, border defense system and security service company and other areas. It will watch over all related BlueTag temperature and humidity data loggers and alert you to potential problems before disaster strikes.
