External Probe Temperature Logger for Cold Chain Monitoring

An external probe temperature data logger measures temperature at the product location while allowing the logger body to remain outside or in an accessible position. In walk-in coolers, pharmacy fridges, insulated shipping containers, and sample boxes, the probe stays near the monitored products. Meanwhile, the logger body remains in an accessible location for LCD viewing and USB data retrieval. For cold chain professionals, this setup ensures clearer handover documentation, rapid access to reports, and helps reduce uncertainty during storage and transportation.

Freshliance Atlas Log-30 Temperature Data Logger is designed to address this challenge between the measurement point and the monitoring interface. With its external probe, clear LCD, automated reporting, and USB interface, it supports workflows that require reliable temperature monitoring and efficient data retrieval.

Why an External Probe Temperature Data Logger Matters

Monitoring the Product Zone Instead of the Logger Location

Standard internal sensors only record the air immediately surrounding the logger housing. While this works for some shipments, it often fails to reflect the true conditions inside pharmaceutical packaging, shipping cartons, or controlled storage cabinets.

By using an external probe temperature data logger, you separate the sensing tip from the readout screen. The probe can be positioned near vaccines, biological samples, or food products. At the same time, the logger sits in a convenient place where staff can easily view the LCD or plug in the USB cable.

Reducing Blind Spots in Coolers and Shipment Boxes

Temperatures inside walk-in coolers and large shippers are rarely perfectly even. Factors like door activity, how products are stacked, blocked airflow, and the position of ice packs create temperature variations within the storage space. A simple wall reading might miss these shifts.

An external probe allows teams to monitor the most critical measurement location: the immediate environment of the product.

How Atlas Log-30 Supports Reliable Temperature Recording

External Probe Design for Cold Chain Spaces

Freshliance Atlas Log-30 Temperature Data Logger is a versatile USB temperature data logger with an external probe designed for monitoring products during transportation and storage. Atlas Log-30 Temperature Data Logger is available in single-use and multi-use configurations. This gives logistics teams the flexibility they need for single-trip shipments, returnable containers, or routine warehouse monitoring.

The device is suitable for temperature monitoring during transportation and storage in applications such as shipping containers, sea and air freight, distribution, cold storage, and freezing of pharmaceuticals, vaccines, and frozen foods. Thanks to its IP65 rating, the logger remains protected against moisture and splashes often found in humid storage rooms or transport hubs.

USB Reports for Quick Data Review

Once a journey or storage cycle ends, the logger connects directly to a computer via USB. It generates PDF and CSV reports automatically, so there is no need for manual data entry. This helps staff quickly review temperature history during receiving or quality inspections.

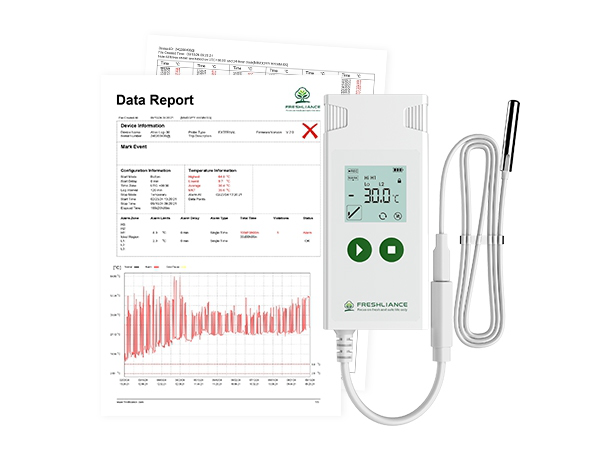

For a more thorough look, Freshliance Tools enables easy configuration and data export. It provides detailed graphs and key statistics like MKT, plus maximum and minimum values. This offers a much deeper understanding of trends and excursions than a simple alarm indicator.

Technical Details That Affect Real Use

Temperature Range, Accuracy, and Memory Capacity

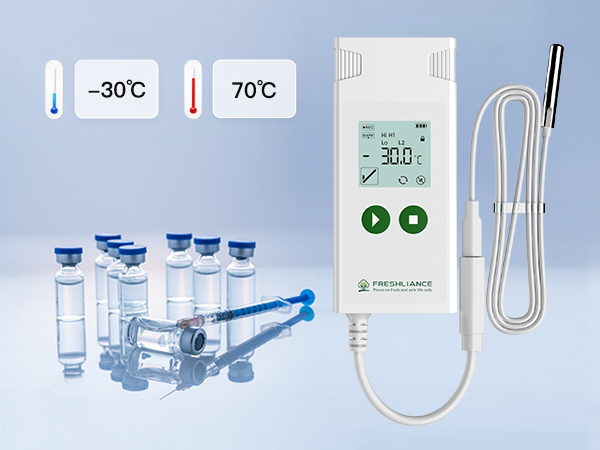

Atlas Log-30 operates from -30°C to +70°C with an accuracy of +/-0.5°C. It offers a resolution of 0.1°C, making it suitable for refrigerated storage and controlled-temperature applications.

Storage capacity varies by the file type selected. It holds up to 35,000 data points for PDF files. When generating both PDF and CSV reports, the logger supports up to 20,000 readings for each format.This capacity supports a wide range of transportation and storage durations depending on the logging interval.

Logging Interval, Start Delay, and Alarm Options

Logging can be set at any interval ranging from 1 minute to 24 hours. Start delay configuration allows the user to set up the time when recording can begin. This ensures that the logger will work effectively for either transport or storage purposes.

Alarm indication appears on the LCD display, while an optional 60 dB buzzer can provide audio indication. Battery powered by CR2450, the logger can interface through USB and optional NFC and works on Windows and Mac operating systems. The logger meets CE, RoHS, and EN12830 standards.

Application Scenarios for Freshliance Atlas Log-30

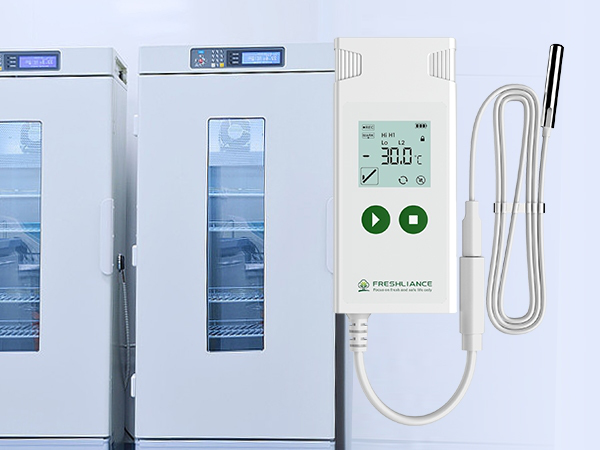

Walk-In Coolers and Pharmacy Storage

Pharmacies and walk-in coolers require regular temperature monitoring. By keeping the external probe inside the unit and the logger body outside, staff can review the display or retrieve reports without opening the doors. This maintains a stable environment for sensitive vaccines and medicines.

This method helps overcome the limitation of measuring only air conditions near the entrance. For facilities handling high-value reagents, measuring at the product level provides a much more accurate picture of storage safety.

Biological Samples and Diagnostic Reagent Shipments

Biological materials are extremely sensitive during the packing and shipping stages. Atlas Log-30 Temperature Data Logger lets you place the probe right near the shipment contents. This makes it easy to check the status at any point without unpacking the goods.

During delivery, a clear digital report ensures a smooth acceptance process. It reduces uncertainty and provides a solid audit trail for every shipment, providing documentation to verify whether reagents remained within required temperature conditions during transport.

Choosing the Right Logger Setup

When Atlas Log-30 Is Better Than a Built-In Sensor

Atlas Log-30 Temperature Data Logger is suitable when the measurement site is cramped, hard to reach, or sealed inside packaging. The probe does the work of sensing the product zone, while the logger stays where operators can easily access the display and interface.

It is also the right tool if you need automated USB reporting and detailed software analysis. For recurring operations, the multi-use version helps lower costs over time across many different shipping lanes or cooler monitoring tasks.

When to Consider Humidity or Ultra-Low Temperature Models

Atlas Log-30 Temperature Data Logger is designed for temperature-only monitoring. For applications requiring both temperature and humidity tracking, the Atlas Log-TH Temperature and Humidity Data Logger provides a practical solution for monitoring both parameters with a single device. For environments below the logger’s operating range, such as ultra-low freezers or dry ice transport, a dedicated low-temperature logger such as the Atlas Log Ultra Low Temperature Data Logger should be considered.

Conclusion

An external probe temperature data logger ensures that cold chain managers are monitoring the product-level environment: the space directly around the product. In pharmacies, coolers, and life science logistics, this leads to better data and more confident decision-making during the receiving process.

Freshliance Atlas Log-30 Temperature Data Logger blends precise probe measurement with easy USB access and a clear LCD interface. It is a compact, reliable data logger for cold chain monitoring requirements. Explore Freshliance Atlas Log-30 Temperature Data Logger to improve your temperature tracking for storage and transit today.

FAQ

Q: What is an external probe temperature data logger?

A: It is a recording device that uses an external probe cable to track temperatures. This allows the probe to be placed inside a container while the main logger remains outside for easy access to the screen and USB port.

Q: Is Atlas Log-30 suitable for humidity monitoring?

A: No, it is designed for temperature only. If you need to track humidity as well, you should choose a model specifically built for both variables to ensure your data is complete.

Q: Where is Atlas Log-30 commonly used?

A: It is widely used in pharmacies, walk-in coolers, and during the transport of vaccines, blood, and diagnostic reagents. It is a suitable solution when you need accurate product-level data and quick digital reports at the point of delivery.
